Flame Arrestors
A Flame Arrestor is a device fitted to the opening of an enclosure or to the connecting pipe works in a system of enclosure and which allows gases or vapors to flow under normal operating condition, but prevents the transmission of flame and stops flame in order to prevent a large fire or explosion. It has no moving parts which comprises of passageways of apertures (Flame Cell Channels) that allows vapor or gases to flow freely through a fine woven wire screen arrestor. The arrestor simultaneously dispenses and cools an approaching flame to a temperature below the vapor ignition point.
Types:
| Inline Type | Are fitted in piping systems to protect down stream equipments |
| End of Line | Are fitted to the end of pipe line or exit to a vessel to prevent flames from entering |
| Application | All underground solvents tanks & flamable liquid processing tanks. |
| Option | Spark Arrestor and Lightening Arrestor can be manufactured on request. |
Specifications
| MOC | CS/SS304/SS316 / PP/ PTFE |
| Conn. | Flanged type 25 NB - 300 NB |
| Ref STD | API 2000 |

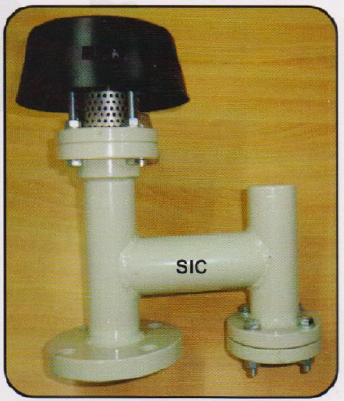

Breather Valves
Breather Valves also known as low pressure relief and vacuum breaker, enclosed in one single housing. Itis widely used where pressure and vacuum relief is required. This operates at a preset pressure, the pressure pallet lifts and giving vent to the flow and where vacuum is developed in closed system, at a set pressure, vacuum pallet lifts in breathing the air. These valves are usually installed on fixed roof tanks, storing highly volatile organic liquids with low flash point.
Specifications:
- This can also be fitted with flame arrestor.
- MOC - CS/SS 304/ SS316 / Aluminium
- Size — s2 5 NB to 300 NB
Corrosion Resistant Linings
These products will have plastic lining inside & suitable for corrosive liquids. Wetted parts are always plastic lined & externally it is metal.
Specifications:
- Externally ms/ss pipes & flanges
- Wetted parts-lined with PP/HDPE/PVDF/PTFE
- Size - 25 NB-200 NB, flanged type
- Testing - spark test at 8 kva
- Lining thickness - 4 to 5 mm
- Products : Tee, Bend, Elbows, Pipes, Cross, Drop Pipe, Dip Pipe, Bellows Reducer, Sight Flow Indicators, Thermo well
Calibration Pots
Sigma Calibration Pots provides a fast, easy and economical means of checking the flow rate of chemical metering pumps. The most accurate test of metering pump flow rate is to measure drawdown rate on the suction side, while leaving the discharge undisturbed in its normal steady state operating condition. Pump flow rate verification on a periodic basis or after maintenance is important to system accuracy.
Features:
Rugged metal frame construction with top and bottom plate, and fastened with tie rods. Shielded gla/ sAcrsyli c model available for acids and strong chemicals. Calibrated scales were protected from harsh chemicals by laminating on both sides.
Specifications:
- Available with screwed or flanged connection.
- MOC - C.S./SS304/ SS316/ Solid Acrylic or PP/HDPE U-PVC/C-PVC/PP-H/PTFE/PVDF
- Measuring Cylinder : Borosilicate Glass / Plexi Glass
- Connection Size: 15 NB to 50 NB Flanged type, 15 NB to 25 NB Screw type
- Capacity — 50ml to 105000 ml
Glasses
Type:
- Sodium Silicate Glass (BS - 3463 - 1975)
- Borosilicate Glass as per (DIN - 7080 & 7081)
- Plexi Glass as per (ASTM D -4802)
- Round, Square, Rectangular, & Oval Shaped Reflex & Transperent
Size & Shape : as per customer requirement.
We also make special glasses for high temperature and High Pressure application up to 300°c and 40 kg /cm? respectively.
Moisture Trap & Seperator
Moisture Trap is a device, which absorbes moisture from air and allow dry airtogo.
- Types : Inline & End of line
- Moc : MS/SS 304/SS 316/PP./PTFE
- Size : 25MB-80 MB
- Conn : Screwed / Flanged
Moisture Seperator.
Moisture Seperator are Suitable for Various Pressure & temprature Conditions, and mainly used for Seperating moisture from airand fabricated from seamless pipes and flanges
- Moc: CS/SS304/SS316
- Size: 15NB to 300 NB
- Comm : Screwed or Flanged
